PRODUCTS
INDIRECT WATER BATH HEATER - CUEL, THAILAND
Flow Rate Coil coil1 4"sch160-59120 kg/hr
coil2 2"sch160-621 kg/hr
coil3 3"sch40-508 kg/hr
Heat Duty 0.65 mm kcal/hr
Vessel Size 2100 mm x 8200mm

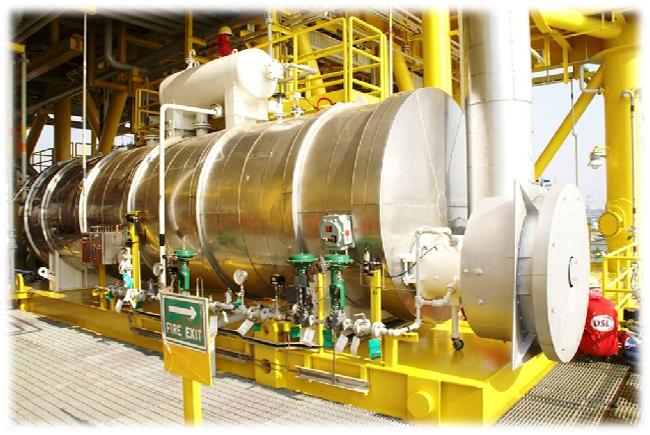

HOT OIL HEATER - TECHNIP
Oil Flow Rate 43,000 kg/hr
Jnlet temp 410 0F
Outlet temp 500 0F
Jnlet pressure 45 psi
Outlet pressure 33 psi
Heat Duty 4.26 mmbtu/hr
Size 1524 mm X 4500 mm
INDIRECT WATER BATH HEATER, LANCO
Capacity 50 m3/hr
Heat Duty 0-20 x106 kcal./hr
Water Inlet Temp. 650C
Water outlate Temp. 700C
Pressure 30 kg/cm2

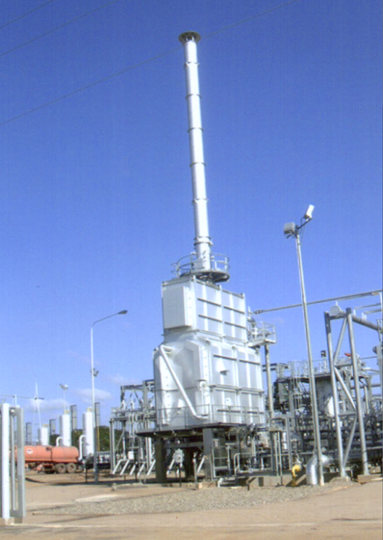

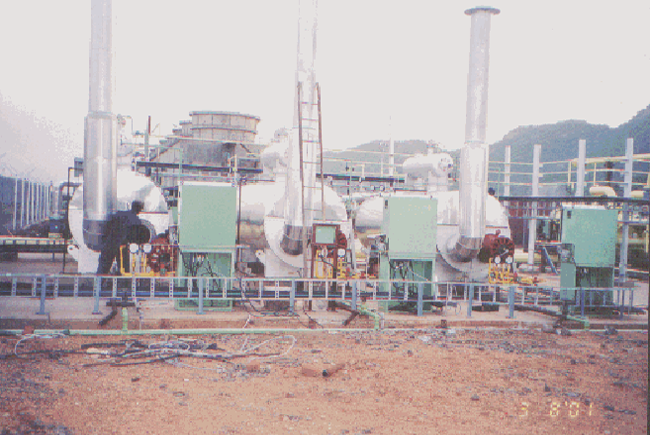

CRUDE HEATER- HORIZANTAL CABIN TYPE VENEZUELA
Heat Capacity 14 mmbtu/hr
Coil operating pressure 5000 psig
Test pressure 7500 psig
Temp. 800C
Gas flowrate 10 mmscfd
INDIRECT BATH HEATER,
OIL INDIA LTD.
Heat Capacity 2mm btu/hr
Coil operating pressure 5000 psig
Test pressure 7500 psig
Temp. 800C
Gas flowrate 10 mmscfd

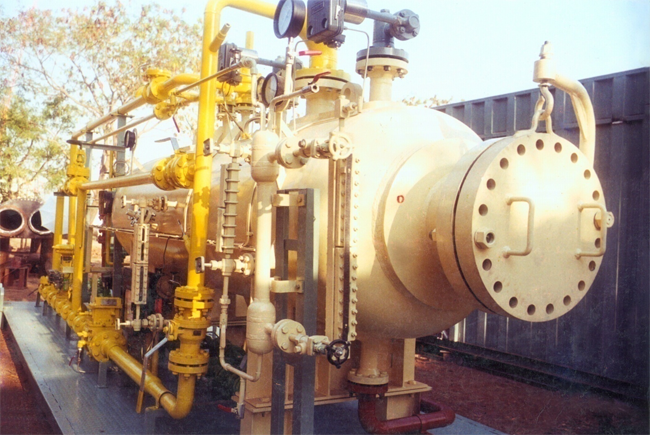

THREE PHASE SEPARATOR ONGC
Gas Flow 700,000 sm3 /day
Oil Flow 350 m3 /day
Water Flow 350 m3 /day
Working Pressure 101 kg/cm2
Test Separator, ONGC
Oil Flow 700 m 3/day
water Flow 350 m3/day
Gas Flow 700000 m 3 / day
Pressure 1440 psi
Temperature 300 0F

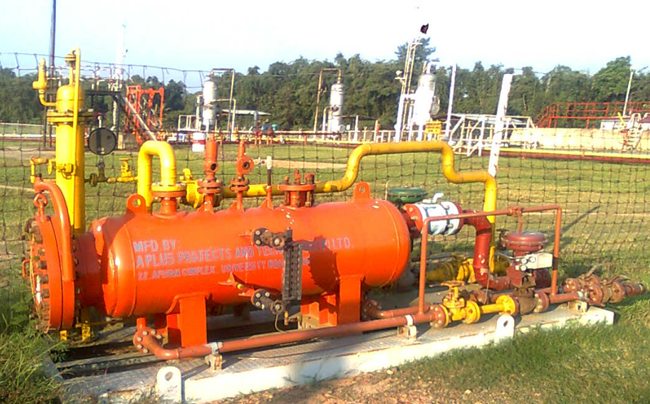

Two Phase Separator for Natural Gas
GAIL
Vessel Diameter 1.8 m
Working Pressure 50 kg/cm2
Height 4.1 m
Two Phase Separator,
CANORO RESOURCES LTD.
Gas Flow 30,000 sm3/day
Design 35 kg/cm2
Operating temperature 35-45 0C
Size 610x1675 mm
Temperature 300 0F
Crude Oil Emulsion Treaters,
Oil India Ltd
Capacity 2000 m3/day
Pressure 30psi
Treating Temp. 60-650C
Size 550C

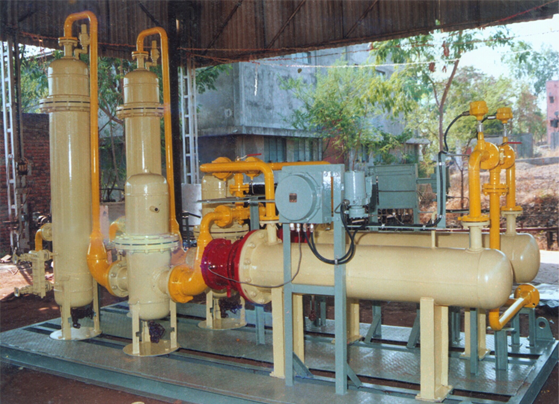

Gas Conditioning Skid, GAIL
Gas Separators, Filters and Heaters
Flow 1350 nm3 / hr
Pressure 15kg / cm2
Inlet Temp. 350C
Oult Temp. 550C
Stationary Locomotive Boiler
Oil India Ltd.
Heating Surface Area 52.2 sq m
Evaporation Capacity 1000 kg/hr
Working Pressure 9.8 kg /cm3

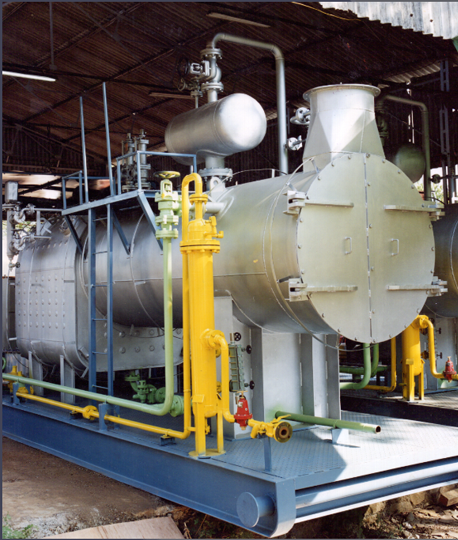

LOCOMOTIVE BOILER
Capacity 900 Kg/hr
Working Pressure 9.8 Kg/cm2
Heating Surface 52.2 Kg/cm2

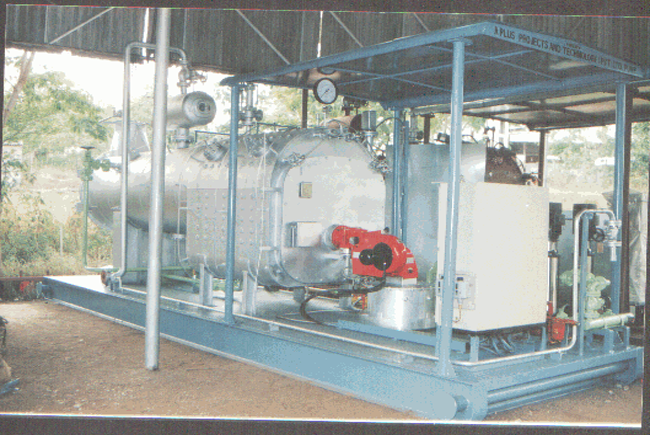

MOBILE STEAM GENERATOR
OIL INDIA LTD.
Capacity 900 kg/hr
Fuel Deisel/Natural Gas
Pressure 1440 psi
Temp. 230 0C

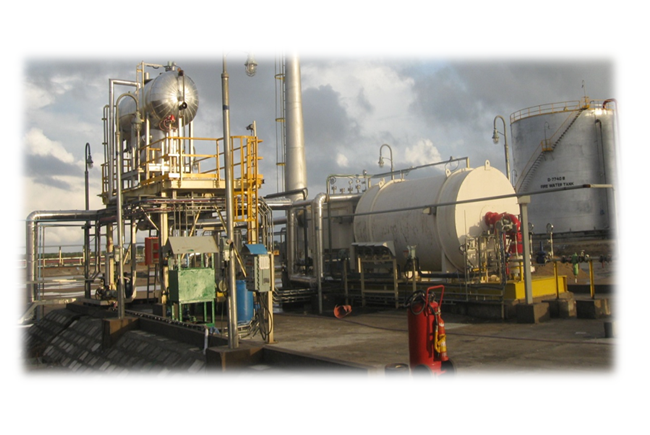

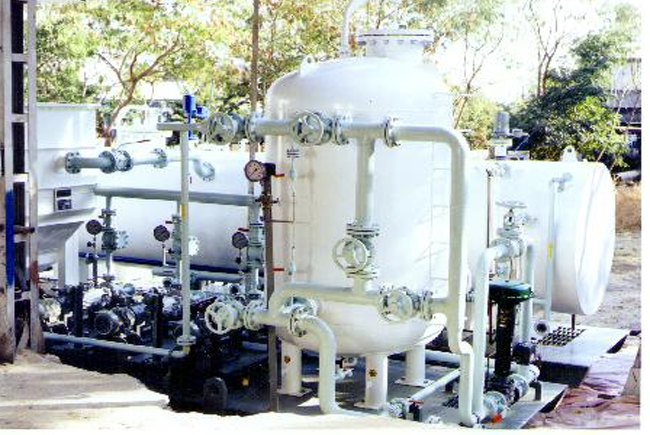

PRODUCED WATER TREATMENT PLANT,
Kuwait
Flow 100 m3/hr and 7.5 m3/hr
Oil Specific Gravity 0.78
Inlet oil 5000 ppm
Outlet oil less than 5 ppm

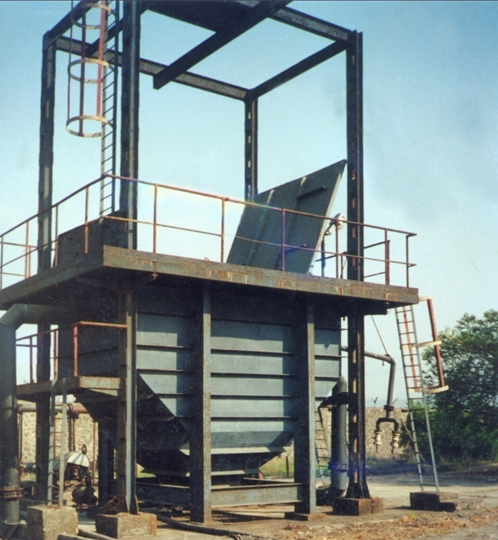

Cross-Flow Interceptor,
HOCL
Flow Rate 250 m3/hr
Inlet Oil 2000ppm
Outlet Oil < 10 ppm
Water treatment plant for produced water
Songo Songo Project, Tanzania
Flow 20 m3/day
Inlet oil content 2000 ppm
Outlet oil content less than 10 ppm
Effluent Treatment Plant,
HPCL, Jaipur
Flow 75 m3/hr
Inlet oil content 3000 ppm
Outlet oil content less than 10 ppm

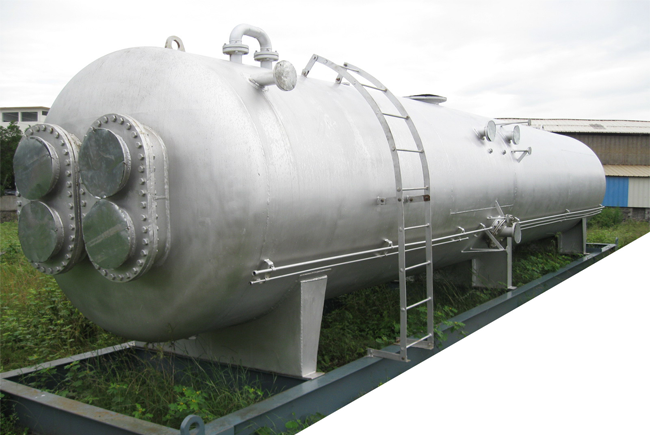

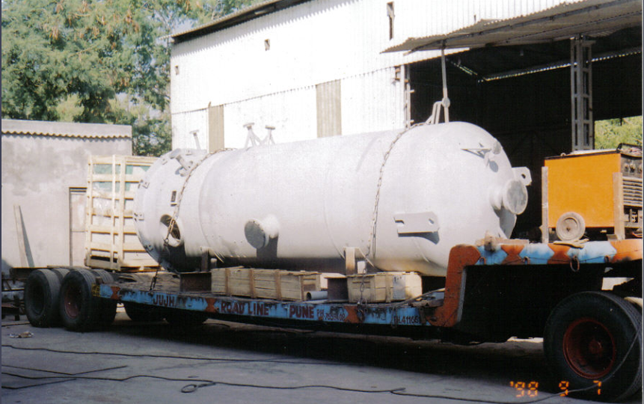

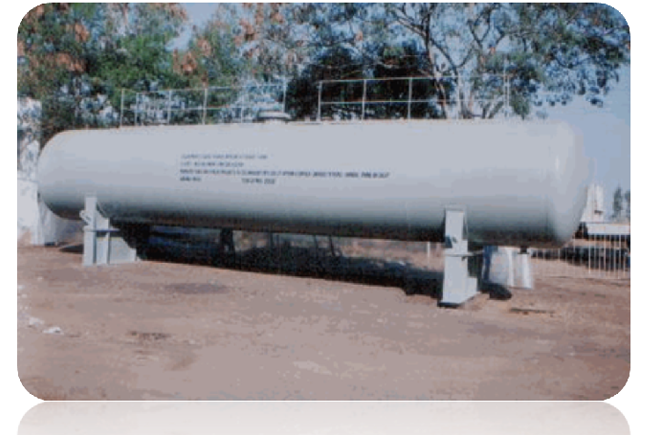

Hydrocarbon Condensate Storage Tank,
Oil India Ltd.
Capacity 50 m3/hr
Design pressure 5.37 kg/cm2
Design Temp. 65.60C
Size 2200x13200x12 mm

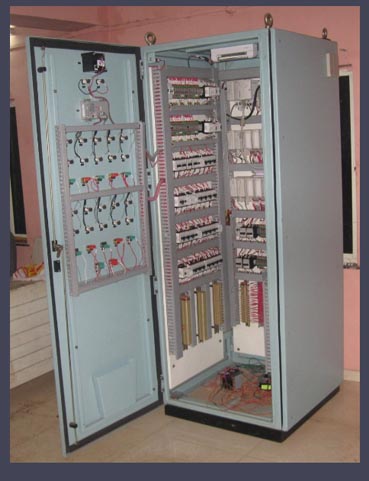

Control Panels
Control panel with Thyristor drive for electrical heating of natural gas

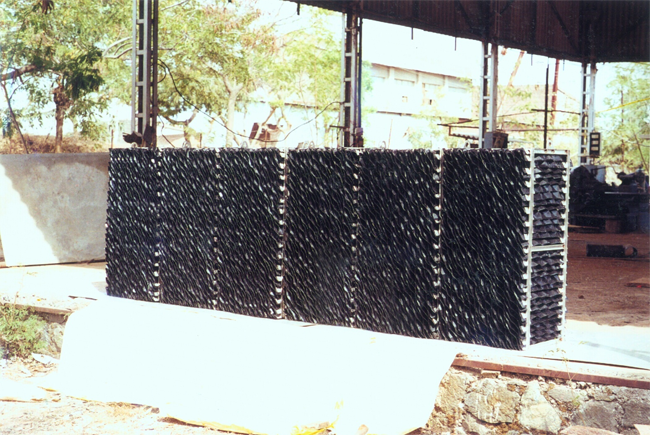

Coalescer Packs

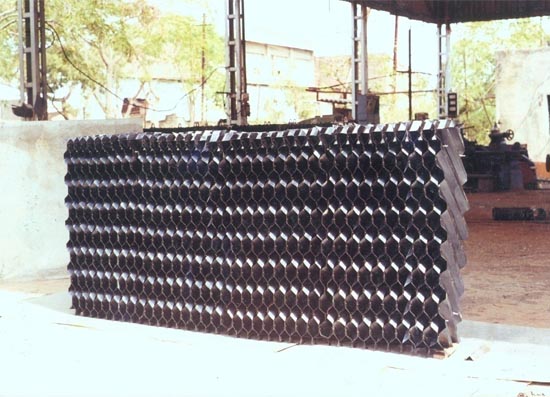

Separation Packs
